Design is a profession that seeks to create new solutions, objects, and spaces based on everyday end-user needs. New demands and requirements for the treatment of patients with COVID-19 have appeared simultaneously and in high demand.
To address this, the Mexican Maker and Designer Community started rendering and producing 3D-Printable and Laser-Cut pieces to help Hospitals and homes tending the needs of those afflicted by the virus. These pieces were assembled, administered, and distributed to Mexico City Hospitals through Claudia Dorenbaum of TOM Mexico.
Architect Juan Carlos Baumgartner and Makers Mexico invited Ariel Rojo Design Studio (ARDS) to join the Mexico Maker Community, which began exploring how to put their creativity and machinery at the service of the medical community and society in general.
Inspired by similar pieces used in other cities as well as other solutions at first presented to TOM Mexico (while anticipating the probable depletion of medical equipment in highly dense Mexico City) Ariel Rojo designed a new printable "splitter" which allows two patients to share one single respirator at the same time. This unique Design optimized airflow, mechanical resistance, and ease of 3D printing. Note: It's important to note that this solution is not considered "ideal" but is very viable during the COVID-19 crisis.
Rojo's Studio also designed Hospital Ventilator Masks for both doctors and patients, which can connect to other medical ventilator equipment and respirator valves. Both of the above are to be used as Open Source by the worldwide 3D Maker community.
The following people contributed to this project:
Arq. Michael Rodjkind, link and coordination with the specialized medical team, and Carsten Lemme, as a member of our design team.
The PEEP valve was optimized for 3D printing and can be found on Thingiverse. Dtextor's PandaPeep GEN2 was a great start but needed some adaptation for the Mexican markets, and our Studio designed the required customization. We recognize this small change to the original Design and are grateful to the original author and Thingiverse for promoting and making these solutions available in the service of humankind.
Ariel Rojo Studio and its associates develop products during a time in which we ask ourselves how we can design for a better society in our belive that Design itself must be for the good of society and collaborative.

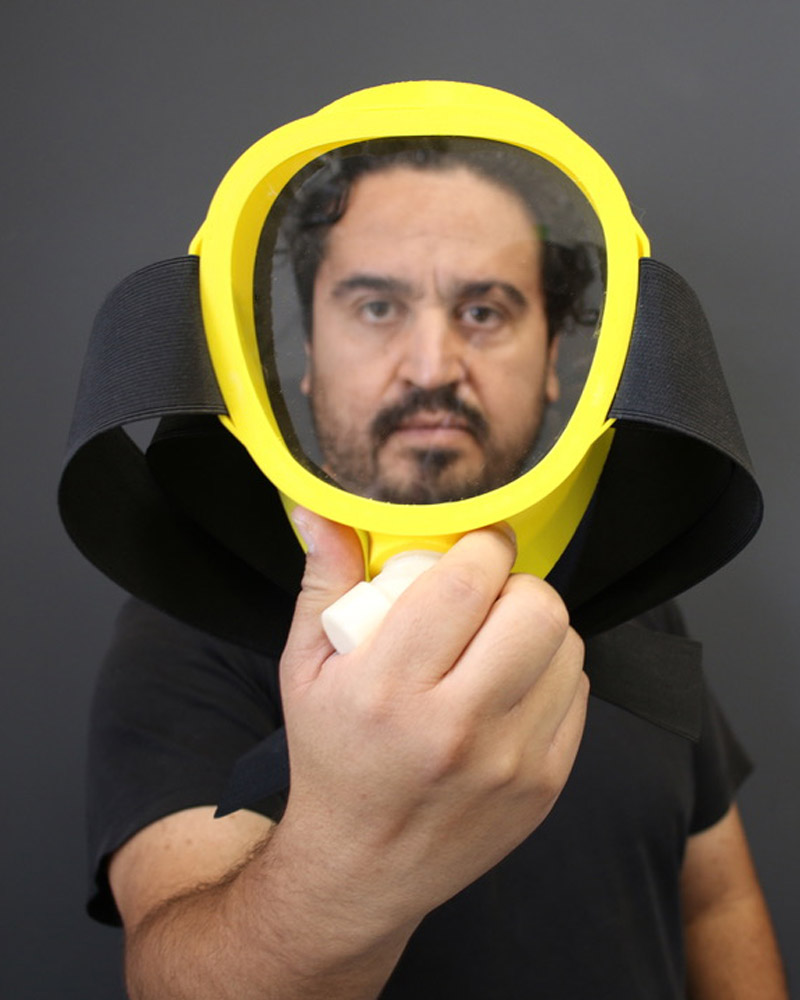

The emergency UNO Respirator Mask was created to help fight the proliferation of the COVID-19 virus. Its design is optimized for 3D printing and includes incoming and outgoing valve ports meant to connect to various medical devices or respiratory filters.
Health Centers and producers: Please contact Makers México for additional questions or details.
Note: All files are delivered "as is" and with no guarantee of any manner (including and not limited are commerce warranties). Ariel Rojo Design Studio, its associates and/or anyone owning any related copywritten material, will not be held accountable to any claim, damage or responsibilities resulting from the usage of any product resulting or derived from its usage, directly or indirectly. We highly suggest you get approval from a specialized medical expert before using. Use at your own risk.
Because this is an emergency design solution, this piece has not been medically certified, therefore it's recommended anyone wanting to use the files and documentation to reproduce it work in conjunction with medical experts and technicians. It's not recommended to reproduce or use these files or pieces without prior medical supervision.
Ariel Rojo Design Studio declares that the drawings, plans and any other intellectual property rights related to the UNO Respirator mask are released free of charge as long as they are NOT used for profit or commercial purposes.
Our ventilator splitter allows two patients to share one single respirator at the same time. This unique Design optimized airflow, mechanical resistance, and ease of 3D printing. Note: It's important to note that this solution is not considered "ideal" but is very viable during the COVID-19 crisis.
Download open source files (Splitter) Download open source files (T-Splitter)
Health Centers and producers: Please contact Makers México for additional questions or details.
Note: All files are delivered "as is" and with no guarantee of any manner (including and not limited are commerce warranties). Ariel Rojo Design Studio, its associates and/or anyone owning any related copywritten material, will not be held accountable to any claim, damage or responsibilities resulting from the usage of any product resulting or derived from its usage, directly or indirectly. We highly suggest you get approval from a specialized medical expert before using. Use at your own risk.
Because this is an emergency design solution, this piece has not been medically certified, therefore it's recommended anyone wanting to use the files and documentation to reproduce it work in conjunction with medical experts and technicians. It's not recommended to reproduce or use these files or pieces without prior medical supervision.
Ariel Rojo Design Studio declares that the drawings, plans and any other intellectual property rights related to the splitter are released free of charge as long as they are NOT used for profit or commercial purposes.
The emergency Respirator Mask was created to help fight the proliferation of the COVID-19 virus. Its design is optimized for 3D printing and includes incoming and outgoing valve ports meant to connect to various medical devices of respiratory filters.
Health Centers and producers: Please contact Makers México for additional questions or details.
Note: All files are delivered "as is" and with no guarantee of any manner (including and not limited are commerce warranties). Ariel Rojo Design Studio, its associates and/or anyone owning any related copywritten material, will not be held accountable to any claim, damage or responsibilities resulting from the usage of any product resulting or derived from its usage, directly or indirectly. We highly suggest you get approval from a specialized medical expert before using. Use at your own risk.
Because this is an emergency design solution, this piece has not been medically certified, therefore it's recommended anyone wanting to use the files and documentation to reproduce it work in conjunction with medical experts and technicians. It's not recommended to reproduce or use these files or pieces without prior medical supervision.
Ariel Rojo Design Studio declares that the drawings, plans and any other intellectual property rights related to the respirator mask are released free of charge as long as they are NOT used for profit or commercial purposes.
This auxiliary breathing mask was created to help fight the proliferation of the COVID-19 virus. Its design is optimized for thermoformed production and includes incoming and outgoing valve ports meant to connect to various medical devices of respiratory filters.
Health Centers and producers: Please contact Makers México for additional questions or details.
Note: All files are delivered "as is" and with no guarantee of any manner (including and not limited are commerce warranties). Ariel Rojo Design Studio, its associates and/or anyone owning any related copywritten material, will not be held accountable to any claim, damage or responsibilities resulting from the usage of any product resulting or derived from its usage, directly or indirectly. We highly suggest you get approval from a specialized medical expert before using. Use at your own risk.
Because this is an emergency design solution, this piece has not been medically certified, therefore it's recommended anyone wanting to use the files and documentation to reproduce it work in conjunction with medical experts and technicians. It's not recommended to reproduce or use these files or pieces without prior medical supervision.
Ariel Rojo Design Studio declares that the drawings, plans and any other intellectual property rights related to the respirator mask are released free of charge as long as they are NOT used for profit or commercial purposes.
The PEEP valve was optimized for 3D printing and can be found on Thingiverse. Dtextor's PandaPeep GEN2 was a great start but needed some adaptation for the Mexican markets, and our Studio designed the required customization. We recognize this small change to the original Design and are grateful to the original author and Thingiverse for promoting and making these solutions available in the service of humankind.
Health Centers and producers: Please contact Makers México for additional questions or details.
Note: All files are delivered "as is" and with no guarantee of any manner (including and not limited are commerce warranties). Ariel Rojo Design Studio, its associates and/or anyone owning any related copywritten material, will not be held accountable to any claim, damage or responsibilities resulting from the usage of any product resulting or derived from its usage, directly or indirectly. We highly suggest you get approval from a specialized medical expert before using. Use at your own risk.
Because this is an emergency design solution, this piece has not been medically certified, therefore it's recommended anyone wanting to use the files and documentation to reproduce it work in conjunction with medical experts and technicians. It's not recommended to reproduce or use these files or pieces without prior medical supervision.
Ariel Rojo Design Studio declares that the drawings, plans and any other intellectual property rights related to the Peep-Valve device are released free of charge as long as they are NOT used for profit or commercial purposes.
The Filter can hold any standard round filter (N95) and can connect to a mask or other parts of our ecosystem.
Health Centers and producers: Please contact Makers México for additional questions or details.
Note: All files are delivered "as is" and with no guarantee of any manner (including and not limited are commerce warranties). Ariel Rojo Design Studio, its associates and/or anyone owning any related copywritten material, will not be held accountable to any claim, damage or responsibilities resulting from the usage of any product resulting or derived from its usage, directly or indirectly. We highly suggest you get approval from a specialized medical expert before using. Use at your own risk.
Because this is an emergency design solution, this piece has not been medically certified, therefore it's recommended anyone wanting to use the files and documentation to reproduce it work in conjunction with medical experts and technicians. It's not recommended to reproduce or use these files or pieces without prior medical supervision.
Ariel Rojo Design Studio declares that the drawings, plans and any other intellectual property rights related to the Peep-Valve device are released free of charge as long as they are NOT used for profit or commercial purposes.
